JLH高压平衡角式截止阀
|
PNl6～45 |
(JLH)L，J67Y JLH多功能阀(JLH)L，J67X型高压平衡式截止阀(JLH)L，L67F1 01型高压平衡式节流阀 |

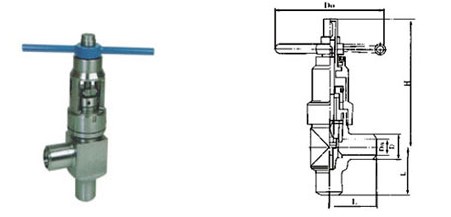

外形及连接尺寸Main external and connecting dimensions
|
公称压PN(MPa) |
公称通径DN(mm) |
外形尺寸(mm) |
|
L |
H |
Dn |
D |
D0 |
|
16
20 |
25 |
108 |
310 |
23 |
42 |
200 |
|
32 |
1 14 |
325 |
29 |
54 |
240 |
|
40 |
121 |
340 |
36 |
60 |
280 |
|
50 |
140 |
380 |
45 |
73 |
300 |
|
65 |
165 |
3 95 |
58 |
89 |
360 |
|
80 |
184 |
475 |
72 |
108 |
400 |
|
100 |
229 |
495 |
90 |
133 |
450 |
|
125 |
266 |
545 |
113 |
159 |
500 |
|
150 |
305 |
57 5 |
135 |
192 |
550 |
|
25
35
45 |
25 |
108 |
310 |
23 |
42 |
200 |
|
32 |
114 |
325 |
29 |
54 |
240 |
|
40 |
121 |
340 |
36 |
60 |
280 |
|
50 |
140 |
380 |
45 |
73 |
300 |
|
65 |
165 |
395 |
58 |
89 |
360 |
|
80 |
184 |
475 |
72 |
108 |
400 |
|
100 |
229 |
495 |
90 |
133 |
450 |
|
125 |
266 |
545 |
113 |
159 |
500 |
|
150 |
305 |
575 |
135 |
192 |
550 |
